Prokut Bar & Chain Combo 14" #24sn Ad
GAF105694
Prokut Bar & Chain Combo 14" #24sn Ad
$56.54
Available
Specifications
Features
Manuals
| Description: | PROKUT Bar And Chain Combo 14" x 3/8" LP (Low Profile) x .043" x 50 DL, AD Mount, |
| Packed In A Retail Display Pack | |
| Replaces OEM: | OREGON 540390 |
| Length: (in): | 14" |
| Length: (cm): | 35 cm |
| Pitch: | 3/8" Low Profile |
| Bar Mount Type: | AD |
| Bar Type: | Consumer Laminated single rivet sprocket nose guide bar |
| Chain / Cutter Type: | 24SN / Semi-Chisel |
| Drive Link Count: | 50 |
| Gauge: | .043" |
| Teeth: | 7 Tooth sprocket nose |
| Recommended Saw Sizes: | 38 cc to 62 cc (2.3 to 3.8 cu. in.) |
| Fits: | Oleo-Mac 1500 models as a Narrow Cut option. |
| Fits: | Oleo-Mac* Power pruner models: EP 100, PP 250, PPX 250, PPX 270 models as a Narrow |
| Cut option. *Note Oil hole requires drilling. | |
| Fits: | Oleo-Mac 240, 241, 244, 344, 931, 935, 1700, BLITZ, E1900, OLE 140F, OLE 300 models |
| as a Narrow Cut option. | |
| Fits: | STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 SUPER, |
| 020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS | |
| 171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS | |
| 191, MS 191 T, MS 192, MS 192 C, MS 192C-E, MS 192 T, MS 192 TC, MS 192 T C-E, MS | |
| 193, MS 193 T, MS 200, MS 200 T, MS 201 C, MS 201 C-E, MS 201 C-EM, MS 201 T, MS | |
| 201 TC-M, MS 210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS | |
| 220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 C-BQ, | |
| MSE 200 and MSE 210 C-BQ models as a Narrow Cut option. Note: Please check your saw | |
| carefully prior to ordering, some of the above saw models were also released fitted | |
| with a .325" pitch chain. | |
| Fits: | STIHL Pole Pruner models: HT 70, HT 73, HT 75, HT 100, HT 101, HT 130, HT 131, HT |
| 250 and HT-KM as a Narrow Cut option. Note: Please check your saw carefully prior | |
| to ordering, some of the above saw models were also released fitted with a 1/4" | |
| pitch chain. | |
| Features: | PROKUT bar and chain combo packs put together our most popular products in |
| convenient and eye catching point of sale clamshell packaging, designed to go | |
| straight into your showroom. The complete PROKUT merchandising program is aimed to | |
| make selection of the right parts much easier, increasing sales. | |

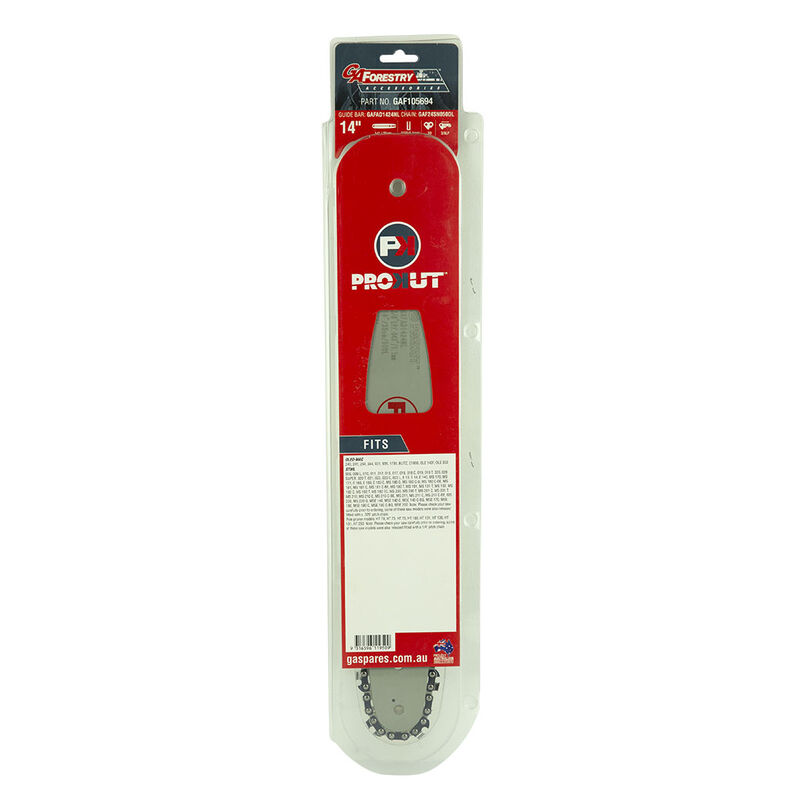

| Kit consists of: | 1 x PROKUT GAFAD1424NL Laminated single rivet sprocket nose guide bar. |
| 1 x PROKUT GAF24SN050DL (50 drive link) chain loop. | |
| 1 x PROKUT Retail display clamshell pack. | |
| Standard Pack Quantity: | 1 |
| Brand: | PROKUT, GA Forestry Accessories |
| Product Line: | bar and chain combo, chain and bar combo, guide bar and chain, sprocket nose guide |
| bar and chain, | |
