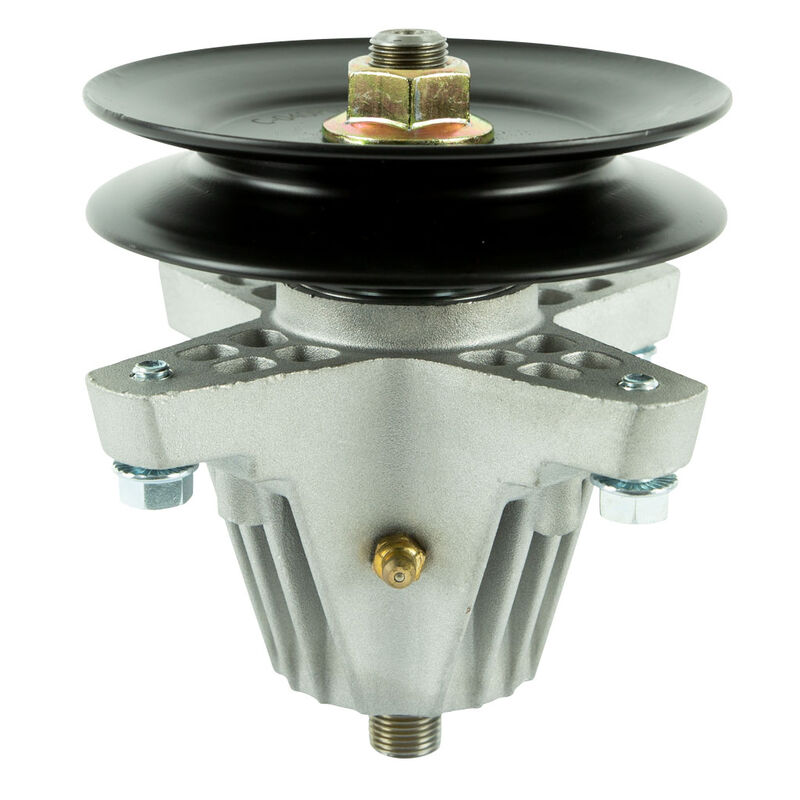

Masport / Morrison / Rover Spindle Assy Suits 24" Cut
JAS8340
Masport / Morrison / Rover Spindle Assy Suits 24" Cut
$117
Available
Specifications
Features
Manuals
| Description: | Non-Genuine Masport, Morrison, Rover / Scott Bonnar 24” Cut Spindle Assembly |
| Replaces OEM: | Masport 618-06032, 918-06032 |
| Morrison 618-06032, 918-06032 | |
| Rover / Scott Bonnar 618-06032, 918-06032 | |
| Centre Hole Type: | 6-Point Star |
| Deck (cm) | 60.96 cm |
| Deck (inches) | 24" |
| Deck (mm) | 609.6 mm |
| Pulley Diameter : (inches) | 5" |
| Pulley Diameter : (mm) | 127 mm |
| Fits: | 24" (607 mm) cut Masport Mini Rider (models 552950 years 2016 to 2017 and 552959 |
| years 2017 to 2020) ride-on lawn mower models. 1 required per unit. | |
| Fits: | 24" (607 mm) cut Morrison Mini Rider (model 552851 years 2014 to 2018) and Mini |
| Rider 190cc/24SD (model 592910 year 2015) ride-on lawn mower models. 1 required per | |
| unit. | |
| Fits: | 24" (607 mm) cut Rover Micro Rider (models 13A326JC333 years 2016 to 2020 and |
| 13B326JC333 years 2019 to 2020) and Rover / Scott Bonnar Mini Rider (model | |
| 13A326JC373 years 2013 to 2016) ride-on lawn mower models.1 required per unit. | |
| Features: | For selected 24" cut decks fitted with 6-point star centre hole blades. |
| Standard Pack Quantity: | 1 |
| Footnote: | Use with our 5/16"-18 x 3/4" self tapping screws part number JAS7893. For a |
| replacement spindle pulley use our part number PUL6654. | |
| Please Note: | ***When installing new spindle assemblies pulley nuts must be checked and correctly |
| tightened. All spindle assemblies are sold as singles, order the quantity required | |
| to make up a set.*** | |
| Brand: | Masport Non-Genuine, Morrison Non-Genuine, Rover / Scott Bonnar Non-Genuine |
| Product Line: | Jackshaft assembly, Quill assembly, pulley and spindle assembly, spindle assembly |
| with pulley, | |
