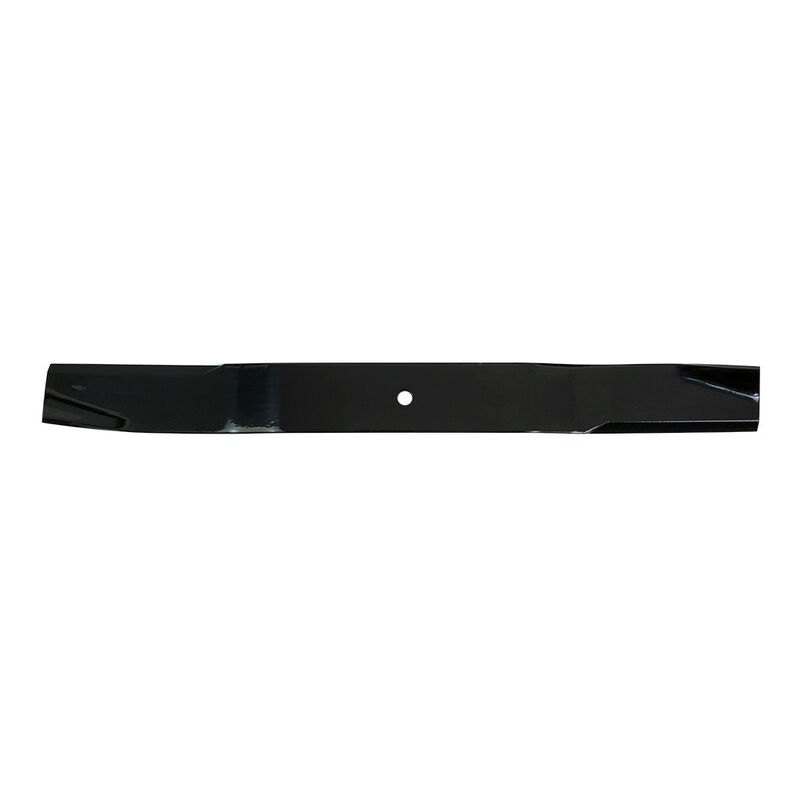

Toro Bar Blade Std / Step 3 X 72" Cut , Rear Discharge Suits Z597-d Z Maste
94073
Toro Bar Blade Std / Step 3 X 72" Cut , Rear Discharge Suits Z597-d Z Master
$44
Available
Specifications
Features
Manuals
| Description: | Non-Genuine TORO Standard Type Bar Blade Suits 72" Cut Rear Discharge And Guardian Recycler Decks |
| Replaces OEM: | TORO: 108-1958, 108-1958-03, 121-5347-03, |
| Centre Hole Diameter: (inches) | 1/2" |
| Centre Hole Diameter: (mm) | 12.7 mm |
| Deck (inches) | 72" Cut. |
| Deck (mm) | 1828 mm Cut. |
| Deck (cm) | 182.8 cm Cut. |
| Length: (in) | 25 3/16" |
| Length: (mm) | 639.76 mm |
| Thickness: (inches) | .250" |
| Thickness: (mm) | 6.35 mm |
| Width: (inches) | 2 1/2" |
| Width: (mm) | 63.5 mm |
| Centre Hole Type: | Round |
| Fits: | 72" (1828 mm) cut TORO Groundsmaster 360, 3280-D, 3320, 3400, 7200 and 7210 traction unit models when fitted with model number 31335 Guardian Recycler decks or model numbers 30303 and 30353 rear discharge decks and Z Master Z597-D (model 74281TE) when fitted with a 72" (1828 mm) cut rear discharge deck. |
| Qty required per unit: | 3 blades required for 72" cut. |
| Features: | A standard bar blade, stepped and fluted, right hand cut. |
| 1/2" Step (Offset). | |
| 1 3/8" Flute (Lift). | |
| Standard Pack Quantity: | 1 |
| Note: | All blade bars are sold as singles, order the quantity required to make up a set. |
| Please Note: | 72" cut side discharge decks use a different blade. When fitted with side discharge decks many of these applications including models 3280-D and 3320 use our part number R110-0621-03. |
| Brand: | TORO - Non Genuine, |
| Product Line: | Bar Blade, Blade - Bar, |
