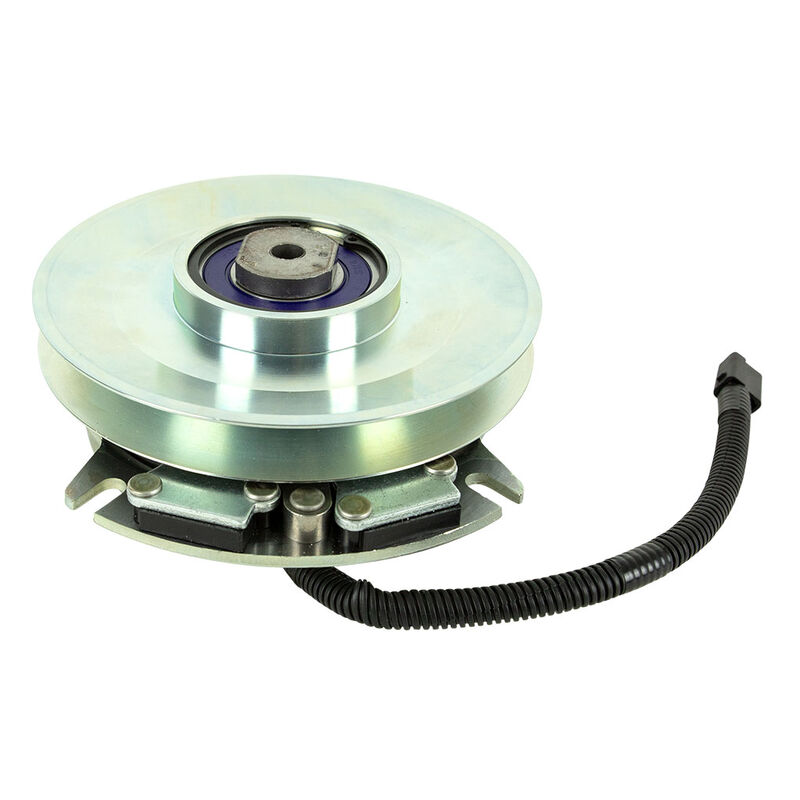

Electric Pto Clutch 1" Id X 7.20" Pulley
CLL8480
Electric Pto Clutch 1" Id X 7.20" Pulley
$777
Available
Specifications
Features
Manuals
| Description: | Non-Genuine TORO Z Master, Warner Electric PTO Clutch Assembly |
| Replaces OEM: | TORO 1-653048, 1-653292, 103-0690, 109-2916, 109-9276, E653048, E653292, |
| Warner 5218-201, | |
| Inside Diameter: (inches) | 1" |
| Inside Diameter: (mm) | 25.4 mm |
| Pulley Diameter : (inches) | 7.20" |
| Pulley Diameter : (mm) | 182.88 mm |
| Fits: | 48" (1220 mm) cut TORO selected models including but not limited to Z Master Z450 |
| (model 74417 year 2008), Z453 (model 74417 years 2005 to 2007, 74417CP years 2007 | |
| to 2008) zero turn radius (ZTR) ride-on models. | |
| Fits: | 52" (1320 mm) cut TORO selected models including but not limited to Z Master Z450 |
| (model 74416 years 2007 to 2008), Z453 (model 74416CP years 2007 to 2008) zero turn | |
| radius (ZTR) ride-on models | |
| Features: | 200 ft. lbs. torque. |
| Cool Coil Technology. | |
| Counter-clockwise rotation. | |
| Precision machined pulley. | |
| Replaceable pulley bearing. | |
| Suitable for 1/2" or 5/8" belts. | |
| Three layer integrated water tight wire harness. | |
| Standard Pack Quantity: | 1 |
| Please Note: | Electric PTO Clutches are a specialist component that should only be fitted by a |
| servicing dealer with the correct equipment to test both the charging circuits and | |
| battery condition, over the counter sales of clutches as spare parts should be | |
| discouraged. WHY? - The main causes of failures to electric clutches are due to | |
| faults with the battery and or charging circuits not providing the correct current | |
| to operate the clutch adequately leading to premature failure. It is therefore the | |
| responsibility of the servicing dealer to test these items prior to installing a | |
| new clutch, failure to do so will void warranty. Warranty covers normal use and | |
| does not cover damage or defect which results from alteration, accident, neglect, | |
| or improper clutch selection, installation, operation, or maintenance. Warranty | |
| covers faulty manufacture and or workmanship. | |
| Brand: | TORO Non-Genuine, Warner Non-Genuine, |
| Product Line: | Assembly - Electric Clutch, Clutch - Electric, Electric PTO Clutch Assembly, |
