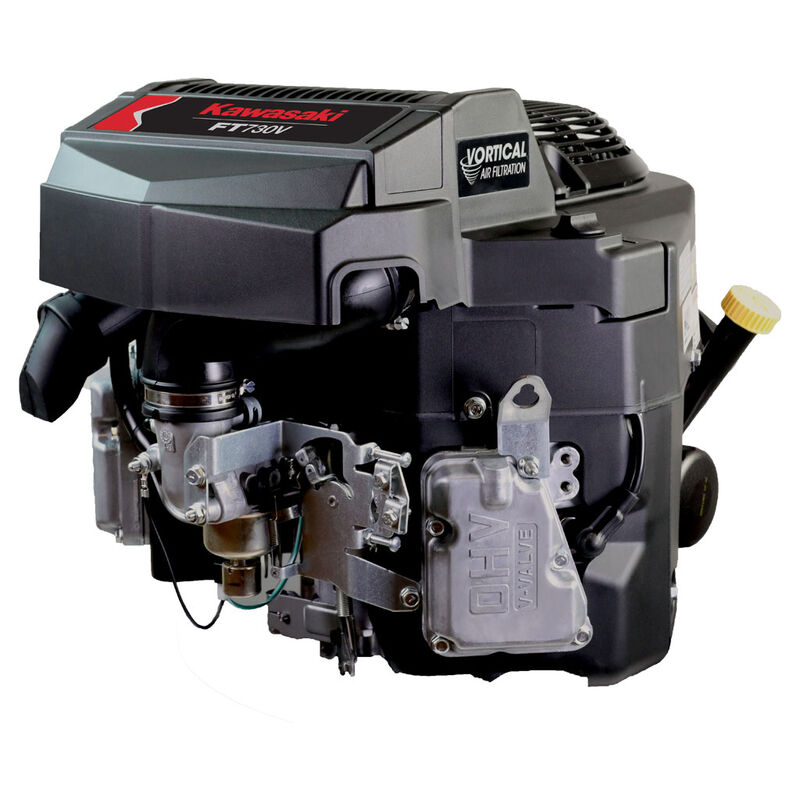

Kawasaki Ft730v-as00-s Vertical Shaft Engine
ENG8397
Kawasaki Ft730v-as00-s Vertical Shaft Engine
$4,232.80
Available
Specifications
Features
Manuals
| Description: | Kawasaki FT730V-AS00-S, 24.0 hp (17.9 kW), 726 cc Vertical Shaft Engine With A 1 |
| 1/8" x 108.8 mm Crankshaft | |
| Editorial: | The new FT Series engines with Vortical air filtration blaze new trails. Kawasaki |
| FT Series engines are designed and built to handle heavy loads. The Vortical air | |
| filtration system muscles out grass and debris while large, easy-to-access | |
| integrated clean-out ports amp up your efficiency and keep you cutting. | |
| Features: | 90° V-twin. |
| High-efficiency, centrifugal air intake system. | |
| Vortical air filtration system with cylinder shaped cartridge air filter. | |
| Large, easy-to-access integrated clean-out ports. | |
| Pressurized lubrication system. | |
| Electronic spark ignition. | |
| Automatic compression release. | |
| Internally vented carburetor with fuel shut-off solenoid. | |
| Cast-iron cylinder liners. | |
| Rotating metal grass chopper screen. | |
| Specifications: | - |
| Type: | Air cooled, 90 degree V-twin, normally aspirated petrol engine. |
| Engine (cc): | 726 cc |
| Horsepower (@3,600 rpm): | 24.0 hp (17.9 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE |
| J1995 Standards.) | |
| Cylinder: | Two, 90° V-twin. |
| Cylinder Liner: | Cast-iron cylinder liners. |
| Bore x Stroke: | 3.1 x 3.0 in. (78 x 76mm). |
| Displacement: | 726 cc (44.3 cu. in.). |
| Compression Ratio: | 8.2:1 |
| Cooling: | Air cooled. Fly-wheel fan. |
| Net Power: | Maximum Power 24.0 hp (17.9 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE J1995 Standards.) |
| Net Torque: | Maximum Torque 39.6 ft-lbs (53.7 N·m) at 2,400 RPM. |
| Decompressor: | Automatic compression release. |
| Ignition: | Electronic spark ignition. |
| Crankshaft Diameter: | 1 1/8" x 108.8 mm. |
| Air Filter: | Cartridge air filter. |
| Charging System: | 12-volt. |
| Starter: | 12-volt. |
| Exhaust/Muffler: | No. |
| Fuel: | Unleaded fuel - maximum of 10% ethanol in fuel. |
| Fuel Filter: | Yes, replaceable, automotive-type. |
| Governor: | Mechanical. |
| Oil Filter: | Yes, spin-on engine oil filter. |
| Oil Capacity: | Oil Capacity w/filter 2.2 U.S. qt ( 2.1 litres). |
| Dry Weight: (lb) | 96.3 lbs. |
| Dry Weight: (kg) | 43.7 kg. |
| Warranty: | Kawasaki Commercial Engine Warranty Policy for Australia |
| GA Power Equipment Spares warrants to the original purchaser of each new Kawasaki | |
| four-cycle engine that such product shall be free, under normal use and | |
| maintenance, from any defect in materials and/or workmanship for a period of | |
| thirty-six (36) months for units purchased on or after 1st September 2017. Any unit | |
| purchased prior to 1st September 2017 will be covered for a period of twenty-four | |
| (24) months after the date of purchase, subject to the following conditions, | |
| exclusions, obligations and limitations for models FR, FS, FX, FD, FJ. | |
| COVERAGE | |
| Any material and/or workmanship in four–cycle engines found to be defective by | |
| Kawasaki within the thirty-six (36) months for units purchased on or after 1st | |
| September 2017. Any unit purchased prior to 1st September 2017 will be covered for | |
| a period of twenty-four (24) month warranty term for models FR, FS, FX, FD, FJ. | |
| Shall be remedied without charge for parts or labour at any authorised Kawasaki | |
| Engine Dealer located in Australia. A Kawasaki part or accessory sold and installed | |
| by an authorised Kawasaki Engine Dealer, which is found defective in material | |
| and/or workmanship, within the three (3) month warranty term, shall be repaired or | |
| replaced (at the option of Kawasaki) without charge for the part or accessory, at | |
| any authorised Kawasaki Engine Dealer located in Australia. | |
| CUSTOMER RESPONSIBILITIES | |
| The following obligations must be fulfilled by the owner to maintain the validity | |
| of Kawasaki Warranty for Australia. Owner must deliver the four-cycle engine to an | |
| Authorised Kawasaki Engine Dealer for inspection, maintenance services and | |
| adjustments as per the Australian periodic maintenance chart attached. The | |
| inspection, maintenance services and adjustments are to be performed at the | |
| owner’s expense. Owner must present proof of initial retail purchase date to an | |
| Authorised Kawasaki Engine dealer at the time warranty repairs are performed on the | |
| four-cycle engine. | |
| LIMITATIONS | |
| This warranty shall not apply to or include any of the following: Repair or | |
| replacement required as a result of accident, misuse or neglect, lack of reasonable | |
| and proper | |
| maintenance, repairs improperly performed or replacements improperly installed, use | |
| of non-genuine Kawasaki+D551 replacement parts or accessories, alterations or | |
| modifications not recommended by Kawasaki, wear and deterioration occasioned by the | |
| by the use of the four-cycle engine, the use of stale or incorrect fuel. Routine | |
| maintenance services, adjustments, cleaning and/or expendables such as spark plugs, | |
| lubricants, oil filters, air filters and fuel filters. | |
| LIMITED LIABILITY | |
| The liability of Kawasaki under the thirty-six (36) months for units purchased on | |
| or after 1st September 2017. Any unit purchased prior to 1st September 2017 will be | |
| covered for a period of twenty-four (24) months warranty for models FR, FS, FX, FD, | |
| FJ is limited solely to the remedying of defects in materials and/or workmanship by | |
| an Authorised Kawasaki Engine Dealer at its place of business during customary | |
| business hours. This warranty does not cover inconvenience or loss of use of the | |
| four-cycle engine or transportation of the four-cycle engine to and from the | |
| Kawasaki Dealer. | |
| AUSTRALIAN CONSUMER LAW (reg.90) | |
| Our goods come with guarantees that cannot be excluded under the Australian | |
| Consumer Law. You are entitled to a replacement or refund for a major failure and | |
| for compensation for any other reasonably foreseeable loss of damage. You are also | |
| entitled to have the goods repaired or replaced if the goods fail to be of | |
| acceptable quality and the failure does not amount to a major failure. | |
| The text above applies not withstanding anything else expressed or implied to the | |
| contrary in this Warranty document. | |
| Standard Pack Quantity: | 1 |
| Please Note: | Specifications subject to change without notice. |
| International Standard: | *PLEASE NOTE: Horsepower rating as tested to SAE J1995 Standards.* |
| Brand: | Kawasaki, |
| Product Line: | Engine, Four Stroke Engine, V-Twin Engine, |
