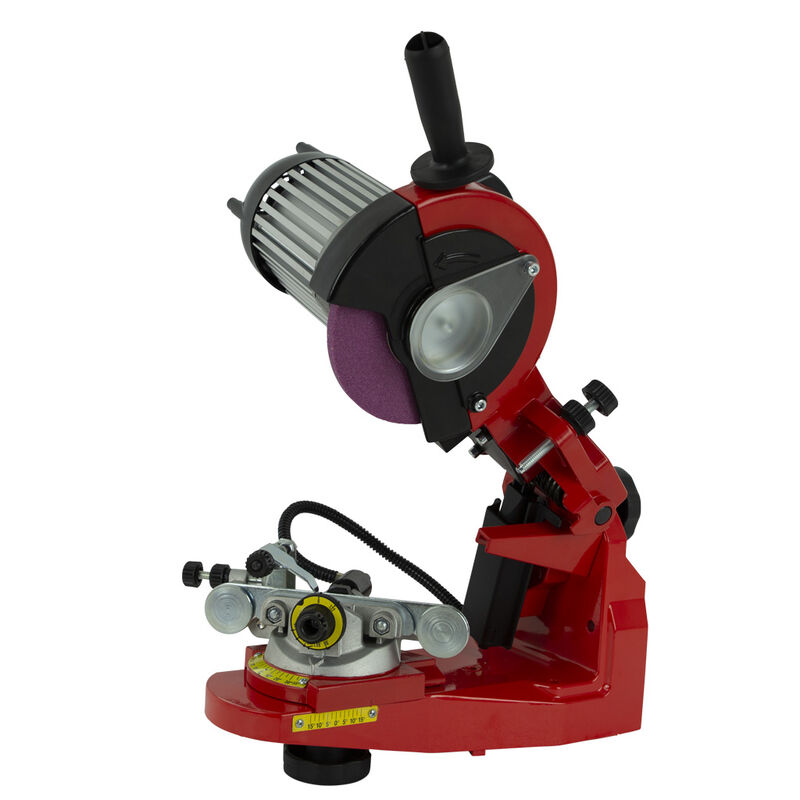

| Description: | PROKUT SUPERJolly Chainsaw Chain Grinder |
| Editorial: | This professional quality bench mounted chain grinder will speed up production in a |
| busy workshop. This unit has all the features of our most popular bench grinder | |
| plus a built-in hydraulic assist that closes the chain vice automatically each time | |
| the motor and wheel are lowered. Eliminates manual locking and unlocking of the | |
| chain vice as each cutter is sharpened and can cut down sharpening time by as much | |
| as 50%. Sharpens all types of chain up to 3/4" pitch right out of the box. | |
| Features: | • The chain is automatically clamped by the grinder head centering operation |
| • Self-center adjustment knob: the chain is always aligned in perfect centre with | |
| the vice turning axis | |
| • Most reliable sharpening of all sizes of saw chains: from 1/4" to 3/4" pitch | |
| • Built in lamp for better visibility | |
| • Large ergonomic handle with release button for comfortable use | |
| • Three mounting options: wall, bench or vice | |
| Accessories Include: | |
| 1 x 3.2 mm Grinding wheel (equivalent of GAF32659) for 1/4", 3/8" LP, .325" pitch | |
| chains. | |
| 1 x 4.7 mm Grinding wheel (equivalent of GAF32660) for 3/8" and .404" pitch chains. | |
| 1 x 8.0 mm Grinding wheel (equivalent of GAF32662) for 3/4" pitch chains. | |
| 1 x Chain hold kit - max. 3/4" chain stop. | |
| 1 x 3/4" gauge template. | |
| 1 x Dressing brick (equivalent of GAF90110). | |
| 1 x Quick-check template (equivalent of GAF1112001). | |
| 1 x 4 mm Allen Key. | |
| 1 x 5 mm Allen key. | |
| Specifications: | CE Approved |
| Voltage: 230 V ~ 50 Hz | |
| Rated power: 214 watt | |
| Max speed: 2800 rpm | |
| Standard Pack Quantity: | 1 |
| Please Note: | Depth gauge lowering grinding wheel is not included with this grinder and is sold |
| separately. For a depth gauge lowering grinding wheel use our part number GAF32661. | |
| Brand: | Prokut, SUPERJolly, GA Forestry Accessories, |
| Product Line: | Bench mounted chain grinder, chainsaw chain grinder, grinder - chainsaw chain, |
