Sprayer 60l
CRT450587
Sprayer 60l
$1,017
Out of Stock
Specifications
Features
Manuals

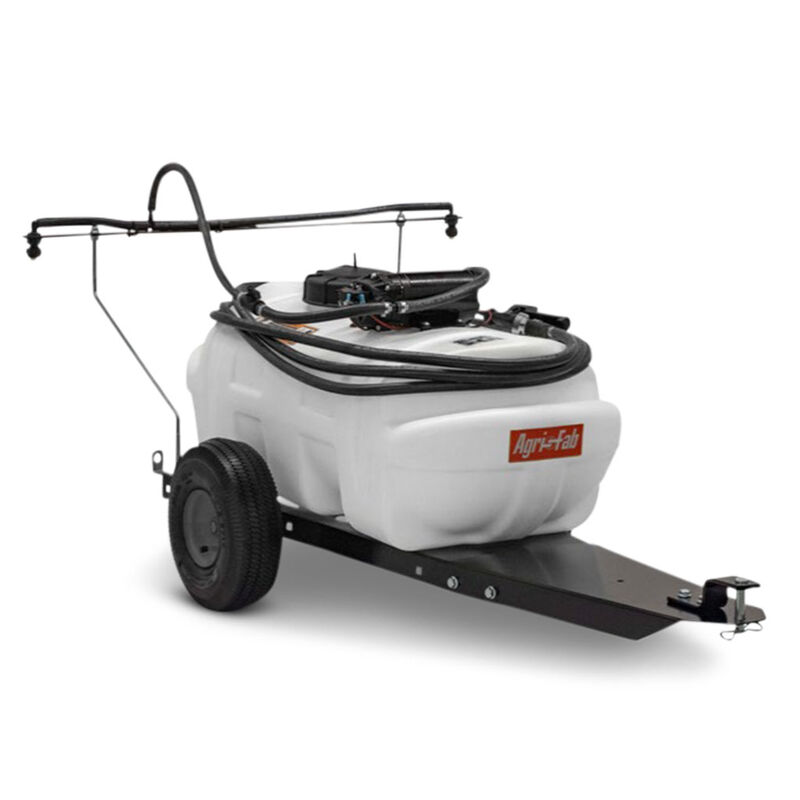

| Description: | Agri-Fab 60 Litre (15 Gallon) Tow-Behind Sprayer |
| Editorial: | Keeping your lawn and garden looking great can be tough. Liquid fertilizers, |
| herbicides, and pesticides are convenient and effective for large lawn and garden | |
| applications. The Agri-Fab sprayers quickly apply herbicides, insecticides and | |
| other liquid chemicals on turf, trees and shrubs and feature a spray boom and a | |
| hand wand for targeted spraying around trees and bushes. | |
| Replaces OEM: | Agri-Fab 45-0587 |
| Height: (inches) | 21" |
| Height: (mm) | 533.4 mm |
| Length: (in) | 51" |
| Length: (mm) | 1295.4 mm |
| Weight: | 54.9 lbs. (24.90 kg) |
| Width: (inches) | 31.5" (60" when spray booms are extended) |
| Width: (mm) | 800.1 mm (1524 mm when spray booms are extended) |
| Wheel(s): | 10-Inch Pneumatic tyres for smooth transport. |
| Fits: | Ideal for use with many brands of lawn tractor and ZTR ride-on lawn mowers |
| including but not limited to selected Cox, Craftsman Garden series, Lawn Series, | |
| Professional Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH, | |
| GTH, LR, LT, LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and X | |
| series, Jonsered GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Man | |
| series, Murray, Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawn | |
| mower models. | |
| Features: | Capacity - 60 Litres (15 gallon). |
| Pressure - 689.47 (kPa) [100 psi], 8.32 litres (2.2 gallon) per minute pump. | |
| Includes boom arms and hand wand. | |
| 60-Inch spray coverage when booms are extended. | |
| Adjustable spray gun nozzle - Twisting the nozzle will adjust the spray pattern | |
| from a cone shaped mist to a solid stream. | |
| Tow hitch - A universal hitch that quickly and easily attaches to lawn tractors and | |
| ZTR's. | |
| Drain - The Agri-Fab, 60 Litres (15 gallon) tow sprayer can be easily drained using | |
| the convenient drain. | |
| Construction - Poly tank, steel frame. | |
| Assembly - Some assembly required. | |
| Standard Pack Quantity: | 1 |
| Safety Instructions: | SAFETY! |
| 1. Read the owners manual that comes with your sprayer and also the vehicle owners | |
| manual before using this sprayer. | |
| 2. Never allow children to operate this sprayer. | |
| 3. Do not allow anyone to ride on or sit on this sprayer. | |
| 4. Keep the area clear of all persons, especially small children. | |
| 5. Read the chemical label before handling or mixing chemicals. | |
| 6. Wear eye and hand protection and protective clothing when handling and applying | |
| lawn chemicals. | |
| 7. Do not spray on windy days. | |
| 8. Be aware of your tractor's capabilities. Attaching this sprayer may affect your | |
| tractor's braking and stability. | |
| 9. STAY OFF STEEP SLOPES. Refer to the vehicle owner's manual concerning safe | |
| operation on slopes. | |
| 10. Operate at reduced speed on rough terrain, along ditches and on hillsides to | |
| prevent loss of control. | |
| Please Note: | OPERATION: |
| CAUTION: Connect to a 12 V battery only. | |
| Pump pressure switch: The pump pressure switch turns off the pump when it reaches | |
| its maximum pressure setting. Very low flow demand may cause the switch to rapidly | |
| cycle the pump on and off. Rapid on and off cycling must be limited to no more than | |
| 6 times per minute. Cycling could cause the motor to heat beyond the recommended | |
| maximum temperature and reduce the operational life of the pump and pressure | |
| switch. | |
| Sprayer controls: Boom ON-OFF valve shuts off the flow to the boom nozzles. | |
| Recirculation valve: Adjust spray wand pressure and recirculation of spray material | |
| to the tank. | |
| Adjustable spray gun nozzle: Twisting the nozzle will adjust the spray pattern from | |
| a cone shaped mist to a solid stream. | |
| BEFORE STARTING: | |
| 1. Attach the sprayer to the tractor hitch. | |
| 2. Connect the wire harness from the switch to the pump. | |
| 3. Check for leaks using plain water. Fix leaking fittings with thread tape. | |
| USING THE SPRAYER: CAUTION: Wear eye and hand protection and protective clothing | |
| when handling and working with lawn chemicals. | |
| 1. Determine the application rate (litres per 100 sq. metre / gallons per 1,000 sq. | |
| feet) based on the chemical manufacturers recommendations. | |
| 2. Estimate the size of the area to be sprayed and the amount of solution that will | |
| be needed. This can help avoid unneeded solution left in the tank. | |
| 3. Refer to the application chart in the owner's manual enclosed with your sprayer | |
| to help determine the speed required to achieve the manufacturers recommended | |
| application rate. | |
| 4. Use plain water to set the correct boom spraying pressure. Turn the boom valve | |
| to the "ON" position. If misting occurs, gradually start closing the valve until | |
| misting stops. | |
| 5. Add the chemical solution to the tank, following the manufacturers | |
| recommendations. | |
| 6. Set the boom arms for spraying. Slide the boom bars out to the ends of the slots | |
| so that the nozzles are about 40" (1 m) apart. Check height of spray tips to ground | |
| (approximately 17" / 43 cm for best results). If necessary, adjust boom height by | |
| raising or lower the boom on the threaded boom supports. | |
| 7. Begin spraying, making each pass so that the spray pattern slightly overlaps the | |
| spray pattern from the previous pass. | |
| 8. Stay clear of flowers, shrubs and evergreen trees when spraying to prevent | |
| contact of the solution with these sensitive plants. | |
| USING THE SPRAY GUN | |
| 9. Shut off the boom by turning the boom valve to "OFF". | |
| Brand: | Agri-Fab |
| Product Line: | Sprayer, Tow-Behind Sprayer, |
