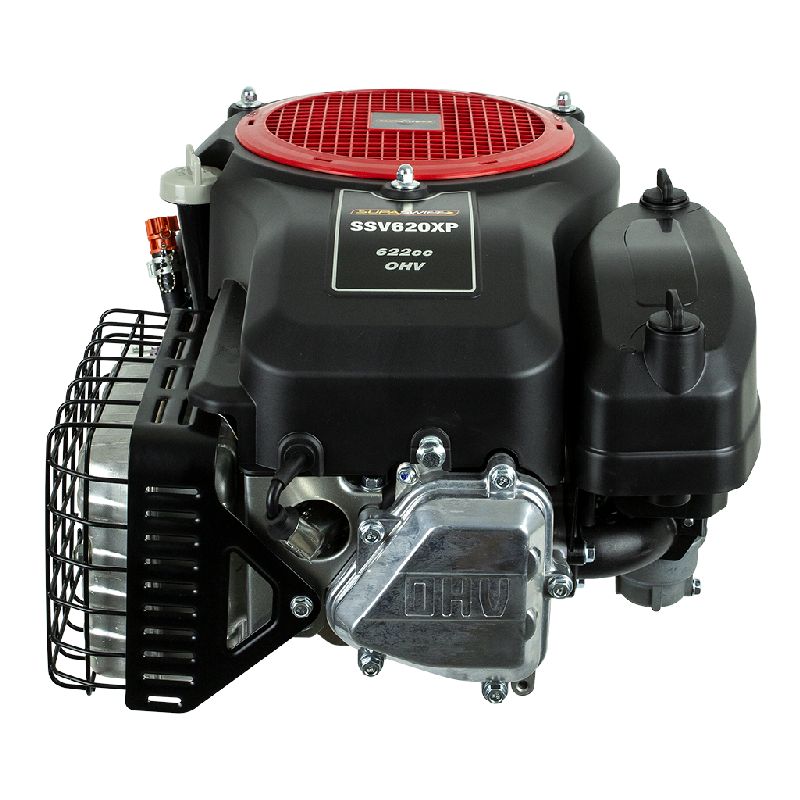

Supaswift Engine Ssv620xp Vertical Shaft
ENG8551
Supaswift Engine Ssv620xp Vertical Shaft
$1,070
Out of Stock
Specifications
Features
Manuals
| Description: | SupaSwift SSV620XP, 17.0 hp, 12.5 kW, 622 cc Single Cylinder OHV Vertical Shaft |
| 4-Stroke Petrol Engine | |
| Editorial: | The SupaSwift SSV620XP is a durable and reliable 12.5 kW single cylinder OHV |
| 4-stroke petrol engine suitable for a variety of outdoor power equipment including | |
| ride-on lawn mowers. With premium features such as a forged crankshaft. metal cam | |
| shaft, cast-iron cylinder liner, OHV design and an oil filter this engine is ready | |
| to provide many years of trouble free service. | |
| Warranty: | 3 Years domestic, 90 days commercial. For further details on our warranty terms and |
| conditions including all limitations and exclusions please refer to the warranty | |
| section on our web site or contact our friendly sales team. | |
| Features: | Cast-Iron cylinder sleeve. |
| Forged and carefully balanced crankshaft. | |
| Metal camshaft. | |
| OHV design. | |
| Oil filter. | |
| Proven reliability. | |
| Conforms to Euro 5 Standards. | |
| Suitable for ride-on mowers. | |
| Engine: | SupaSwift SSV620XP. |
| Type: | Forced air-cooled, single cylinder OHV, vertical shaft, normally aspirated 4-stroke |
| petrol engine. | |
| Displacement: | 622 cc. |
| Bore x Stroke: | 96mm x 86mm. |
| Cylinder: | Single cylinder with cast -iron cylinder sleeve. |
| Compression Ratio: | 8.5:1. |
| Net Power: | 17.0 hp [12.5 kW] @ 3600 rpm (Measured in accordance with SAE J1349). |
| Net Torque: | 40 nm @ 2600 rpm (Measured in accordance with SAE J1349). |
| Horsepower (@3,600 rpm): | 17.0 hp (Measured in accordance with SAE J1349). |
| Engine (cc): | 622 cc. |
| Crankshaft: | Forged and balanced crankshaft. |
| Crankshaft Diameter: (inches) | 1". |
| Crankshaft Diameter: (mm) | 25.4 mm. |
| PTO Shaft Type: | A (1" or 25.4 mm, parallel keyway). |
| PTO Shaft Rotation: | Anti-clockwise (viewed from the PTO side). |
| Cooling: | Forced air-cooled. |
| Governor: | Centrifugal mass type. |
| Carburettor: | Butterfly type. |
| Choke: | Manual. |
| Starter: | Electric start. |
| Ignition: | Transistorised magneto ignition. |
| Charging System: | 15 amp. |
| Spark Plug: | NGK - BPR6ES. |
| Spark Plug Gap: | 0.6 - 0.8 mm. |
| Valve Clearance: | Inlet Valve: 0.10 - 0.15 mm. / Exhaust Valve: 0.10 - 0.15 mm. |
| Lubrication: | Splash and pressure lubrication system. |
| Oil Grade: | SAE 10W/30. |
| Oil Filter: | Yes. |
| Oil Capacity: | 1.8 litres. |
| Fuel: | Unleaded (minimum of 90 octane). |
| Fuel Capacity: | Please Note: This engine does not come with a fuel tank. |
| Fuel Filter: | No. |
| Air Filter: | Dual element paper and foam. |
| Exhaust/Muffler: | Yes, includes muffler and guard. |
| Dimensions L x W x H: | 470 mm x 405 mm x 400 mm. |
| Dry Weight: (lb) | 72.75 lb. |
| Dry Weight: (kg) | 33 kg. |
| International Standard: | Conforms to EU5. |
| Standard Pack Quantity: | 1 |
| Please Note: | Specifications subject to change without notice. The power rating of this engine is |
| the net power output tested on a production engine and measured in accordance with | |
| SAE J1349 at 3,600 rpm (Net Power) and at 2,600 rpm (Max. Net Torque). Please Note: | |
| This engine does not come with a fuel tank. | |
| Brand: | SupaSwift, |
| Product Line: | Engine, Four Stroke Engine, SupaSwift Engine, 4-Stroke Engine, |
