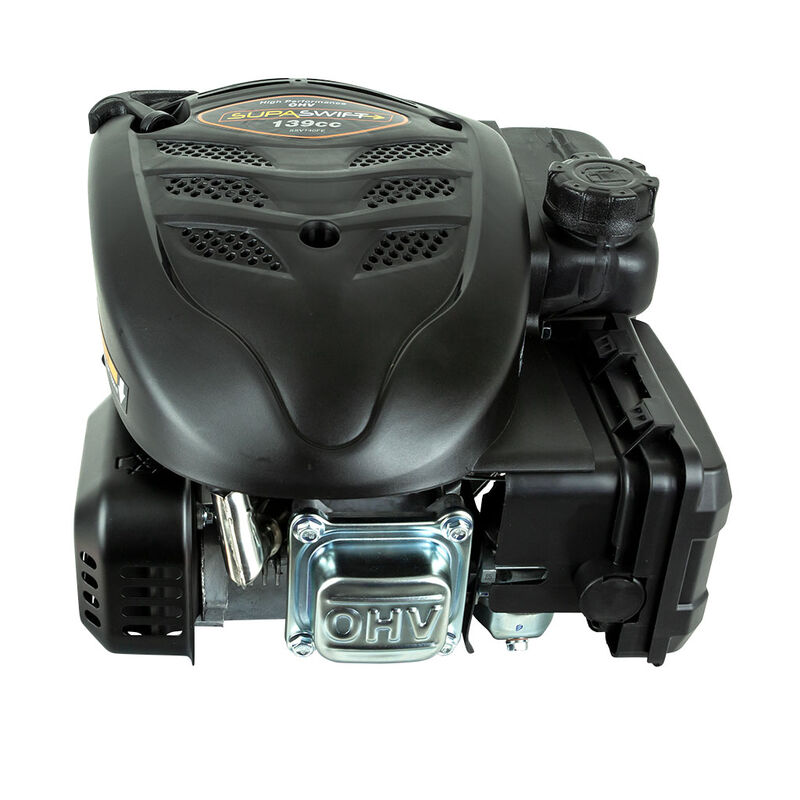

Supaswift Engine Ssv140fe 139cc Vertical Shaft Lc1p65fe
ENG8390
Supaswift Engine Ssv140fe 139cc Vertical Shaft Lc1p65fe
$307
Available
Specifications
Features
Manuals
| Description: | SupaSwift SSV140FE, 2.7 kw, 139 cc Single Cylinder OHV Vertical Shaft Engine |
| Editorial: | The SupaSwift SSV140FE is a quality small engine packed with premium features such |
| as a forged crankshaft. metal cam shaft with nylon gear, alloy cylinder liner, OHV | |
| design and with proven reliabilty this engine is ready to be fitted to a variety of | |
| out door power equipment including walk-behind lawn mowers, to provide years of | |
| trouble free service. | |
| Warranty: | 3 years domestic, 3 months commercial. For further details on our warranty terms |
| and conditions including all limitations and exclusions please refer to the | |
| warranty section on our web site or contact our friendly sales team. | |
| Features: | Alloy cylinder liner. |
| Forged crankshaft. | |
| Metal camshaft with nylon gear. | |
| OHV design. | |
| Auto choke. | |
| Lightweight. | |
| Dual stage air filter, pleated paper with foam pre-filter. | |
| Proven reliability | |
| Conforms to Euro 5. | |
| Engine: | SupaSwift SSV140FE. |
| Type: | Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol |
| engine. | |
| Displacement: | 139 cc. |
| Bore x Stroke: | 65 mm x 42 mm. |
| Cylinder: | Single cylinder, with alloy cylinder liner. |
| Compression Ratio: | 8.5:1. |
| Net Power: | 2.7 kW @ 3600 rpm. (Measured in accordance with SAE J1349) |
| Net Torque: | 7.0 Nm @ 2500 rpm. (Measured in accordance with SAE J1349) |
| Engine (cc): | 139 cc |
| Crankshaft: | Forged crankshaft |
| Crankshaft Diameter: (inches) | 7/8" |
| Crankshaft Diameter: (mm) | 22.22 mm |
| PTO Shaft Type: | 7/8" (22.22 mm) diameter, 3.16" (80.2 mm) long, with woodruff key. |
| PTO Shaft Rotation: | Anti-clockwise (from the PTO side) |
| Cooling: | Air cooled. |
| Governor: | Centrifugal mass type. |
| Carburettor: | Butterfly type. |
| Choke: | Auto choke. |
| Idle Speed: | 1800 ± 150 rpm / min. |
| Starter: | Recoil Start. |
| Ignition: | Transistorised Magneto Ignition. |
| Lubrication: | Splash. |
| Oil Capacity: | 550 ml (please use SAE10W/40 oil). |
| Fuel: | Unleaded |
| Fuel Capacity: | 0.9 Litre |
| Fuel Filter: | Yes, In-tank type fuel filter. |
| Air Filter: | Pleated paper type with foam pre-filter. |
| Exhaust/Muffler: | Yes |
| Dry Weight: (lb) | 18.73 lb. |
| Dry Weight: (kg) | 8.5 kg |
| International Standard: | Conforms to EU5 |
| Standard Pack Quantity: | 1 |
| Please Note: | Specifications subject to change without notice. The power rating of this engine is |
| the net power output tested on a production engine and measured in accordance with | |
| SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque). | |
| Brand: | SupaSwift, |
| Product Line: | Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine, |
