Plug Aerator
CRT24213
Plug Aerator
$727
Out of Stock
Specifications
Features
Manuals

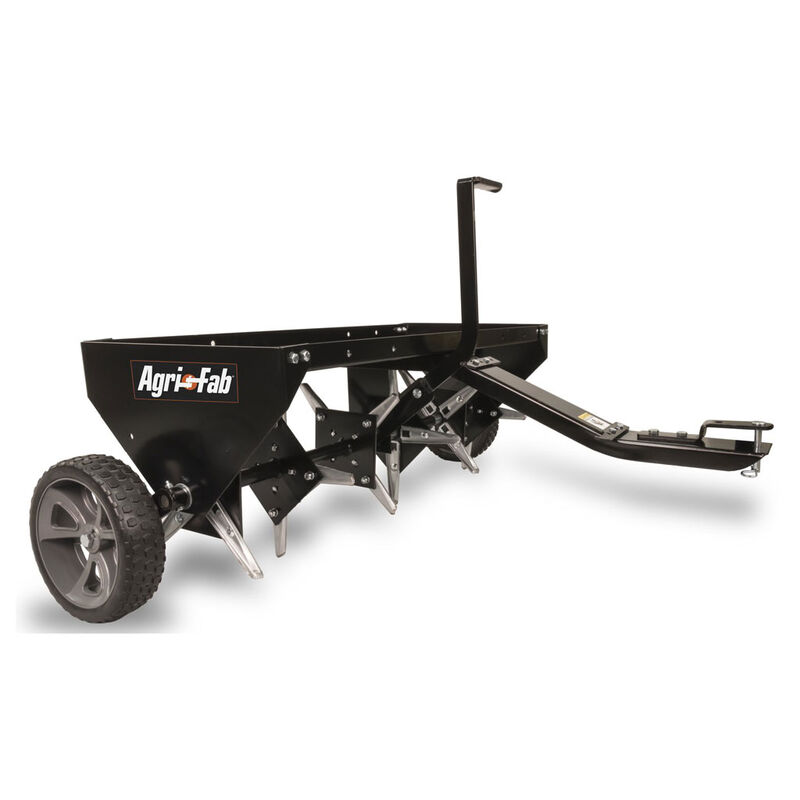

| Description: | Agri-Fab 40" (1016 mm) Tow-Behind Plug Aerator |
| Editorial: | Aerate compacted soil to promote new grass growth and enjoy a golf course like |
| lawn. Ideal for use with many brands of lawn tractor type ride-on lawn mowers | |
| including but not limited to selected Cox, Craftsman, Dixon, Greenfield, Husqvarna, | |
| John Deere, Jonsered, McCulloch, MTD, Murray, Poulan Pro and Rover ride-on lawn | |
| mower models etc. | |
| Aerating means pulling small soil plugs, ranging up to three inches in length, from | |
| the soil to create small reservoirs that will bring oxygen, fertilizer and water | |
| down into the roots. For best aerator performance, the following lawn preparations | |
| and operating procedures are recommended. | |
| OPERATION: CAUTION: POINTS OF AERATOR KNIVES ARE SHARP! EXERCISE CAUTION AT ALL | |
| TIMES WHILE USING THE AERATOR. | |
| 1. Mow lawn and remove loose clippings prior to use of lawn aerator. | |
| 2. Start the lawn tractor engine with controls in neutral and place throttle at a | |
| slow engine speed. | |
| 3. Engage shift lever at the lowest possible forward speed and lower aerator, | |
| allowing plugger points to enter the ground. Increase speed as conditions permit. | |
| 4. Aerate in the straightest line possible, making overlapping passes to increase | |
| the plugger point pattern. | |
| 5. Avoid extremely sharp turns with plugger points engaged in ground to prevent | |
| damage to lawn. | |
| 6. DO NOT cross over foot paths or drive ways without first raising the aerator to | |
| the transport position. | |
| 7. On sloped lawns, always aerate in an up and down direction. DO NOT attempt to | |
| follow the contour of the ground. | |
| 8. To increase the depth of plugger point penetration, up to 140 lb (63.5 Kg) of | |
| weight, such as bags of sand or (4) concrete blocks, may be added to the tray. The | |
| weight can be secured to the tray with ties or straps fastened to the front and | |
| rear of the tray. Fasten so that the ties or straps cannot become entangled on | |
| rotating parts. | |
| 9. If the ground is extremely hard and dry, it is recommended that it be sprinkled | |
| or watered down for one or two hours prior to aerating. | |
| 10. DO NOT attempt to aerate if ground is too wet, (muddy). | |
| 11. Due to small rocks and gravel which are normally present in aerated soil plugs, | |
| it is recommended that the plugs be raked; otherwise damage to the lawn mower | |
| blades may arise, especially when reel type mowers are used. | |
| Replaces OEM: | Agri-Fab 45-05182 |
| Carton Size: (inches) | 43.0" x 17.6" x 8.6 (L x W x H) |
| Carton Size: (mm) | 1092 mm x 447 mm x 218 mm (L x W x H) |
| Height: (inches) | 24" |
| Height: (mm) | 610 mm |
| Length: (in) | 50" |
| Length: (mm) | 1270 mm |
| Weight: | 79 lbs (36.83 kg) |
| Width: (inches) | 39" |
| Width: (mm) | 990.6 mm |
| Fits: | Ideal for use with many brands of lawn tractor type ride-on lawn mowers including |
| but not limited to selected Cox, Craftsman Garden series, Lawn Series, Professional | |
| Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH, GTH, LR, LT, | |
| LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and X series, Jonsered | |
| GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Man series, Murray, | |
| Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawn mower models. | |
| Features: | 24 knives to penetrate the soil. |
| Knives are manufactured from 12 gauge galvanised steel. | |
| Transport handle for easy raising and lowering of the aerator knives. | |
| Pulls plugs up to 3 inches deep for thicker and healthier lawn. | |
| Tray is 40" x 16" (1016 mm x 406 mm) and manufactured from 13 guage steel then | |
| powder coated. | |
| Flat free tyres for smooth transport. | |
| Standard Pack Quantity: | 1 |
| Please Note: | Required tow hitch height is between 7" to 12" (178 mm to 304 mm) |
| Recommended towing speed 3 mph (4.82 kph) | |
| Due to idle speeds (ground speed) this aerator is designed for use with lawn | |
| tractors and is not for use with ZTR's or four wheelers. | |
| To avoid damage, the knives must be raised prior to making a turn. | |
| Reversing (backing up) is not recommended when the plug aerator is fully loaded. | |
| Additional weight of up to 140 lb (63.5 Kg), such as bags of sand or concrete | |
| blocks, can be placed on the tray to increase depth of point penetration. Always | |
| secure weight to the tray with ties or straps fastened to the front and rear of the | |
| tray. Fasten so that the ties cannot become entangled in rotating parts. | |
| If the ground is extremely hard and dry, it is recommended that it be sprinkled or | |
| watered down for one or two hours prior to aerating. | |
| Brand: | Agri-Fab |
| Product Line: | Aerator - Plug Type, Plug Aerator, |
