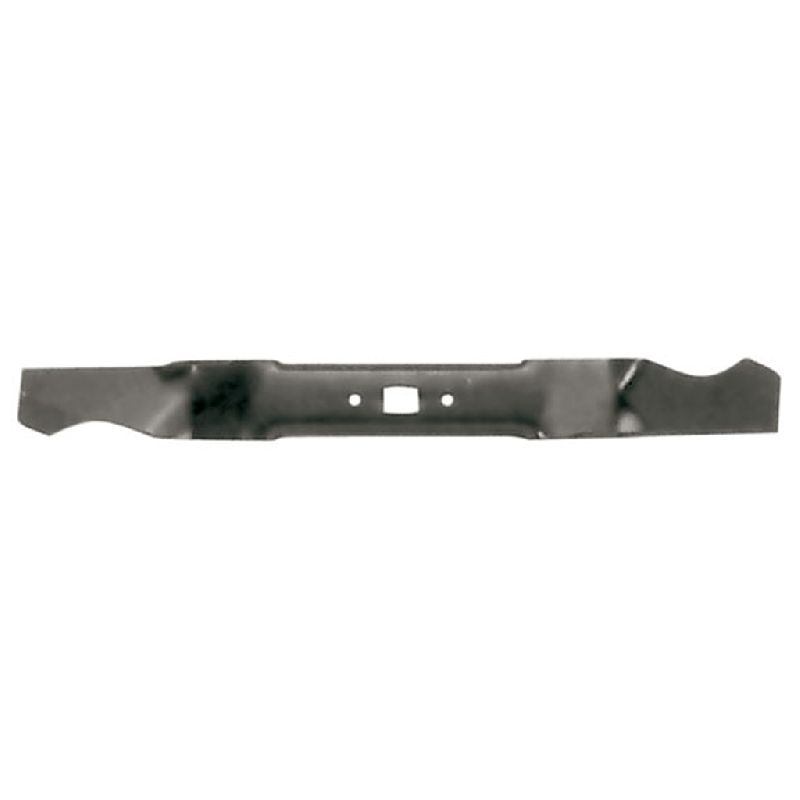

Mtd 20\" Domestic Bar Blade High Lift 4 Point Bow Tie
BLF6232
Mtd 20\" Domestic Bar Blade High Lift 4 Point Bow Tie
$49
Available
Specifications
Features
Manuals
| Description: | MTD Domestic Bar Blade |
| Replaces OEM: | MTD: 942-0640, 742-0640 |
| Centre Hole Dia. (inches) | 15/16" x 3/4 |
| Centre Hole Dia. (mm) | 24mm x 19 |
| Centre to Centre (inches) | 2 1/2 |
| Centre to Centre (mm) | 63 |
| Length: (in): | 19 63/64 |
| Length: (mm): | 507 |
| Outside Hole Diameter (inches) | 19/64 |
| Outside Hole Diameter (mm) | 7.5 |
| Thickness: (inches) | .134 |
| Thickness: (mm) | 3.4 |
| Width: (inches) | 2 1/4 |
| Width: (mm) | 57 |
| Centre Hole Type: | Rectangle, |
| Fits: | MTD 20" cut side discharge Yard Machine utility models since 1997. |
| Features: | Fits 4 point bow tie applications. Flat with high lift flute, right hand cut. |
| Standard Pack Quantity: | 1 |
| Brand: | MTD - Non Genuine |
| Product Line: | Blade, bar |
