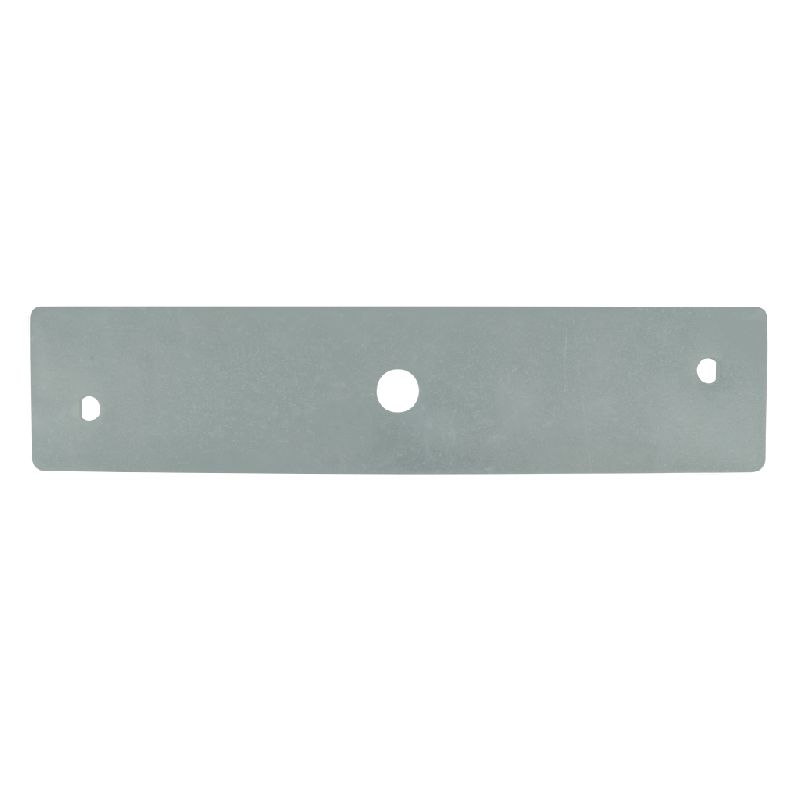

Toro Flat Composite Bar X 2 For 42\" Cut
BLH7863
Toro Flat Composite Bar X 2 For 42\" Cut
$68
Available
Specifications
Features
Manuals
| Description: | Non-Genuine TORO® Selected 42" Cut Flat, Swing Back Blade Conversion Carrier Bar |
| Centre Hole Dia. (inches) | 5/8" |
| Centre Hole Dia. (mm) | 15.875 mm |
| Length: (in): | 11 7/16" |
| Length: (mm): | 290 mm |
| Thickness: (inches) | 0.1968" |
| Thickness: (mm) | 5 mm |
| Centre Hole Type: | Round |
| Deck (inches) | 42" |
| Deck (mm) | 1067 mm |
| Fits: | 42" (1067 mm) cut TORO® RZT420H (2008 to 2009 models), TimeCutter® Z420 (2005 |
| models), Z4200 (2007 to 2010 models), Z4202 (2009 to 2010 models), Z530 (2006 to | |
| 2007 models) zero turn radius (ZTR) ride-on models. | |
| Qty required per unit: | 2 composite bars required for 42" cut. |
| Australian Made: | Yes |
| Features: | • Converts units which came standard off the production line with bar blades and |
| allows them to be fitted with swing back blades. Please order the swing back blades | |
| separately from the options listed below. | |
| • "D" hole to "D" hole: 9.574" (243.17 mm) | |
| Standard Pack Quantity: | 1 |
| Note: | All blade carriers are sold as singles, order the quantity required to make up a |
| set. | |
| Please Note: | Use with our part numbers BRC5543 x 2 qty swing back blade and bolt combo's or |
| BLS3653 x 2 qty swing back blade sets and BBN3722 x 2 qty bolt sets. | |
| For a standard bar blade option use our BLR7544 x 2 qty, for a Copperhead™ | |
| mulcher bar blade option use our BLR8202 x 2 qty. | |
| Brand: | Toro - Non Genuine, |
| Product Line: | bar - blade carrier, blade holder bar, composite blade carrier bar, blade carrier |
| bar, swing back blade carrier bar, | |
