John Deere Spindle Assembly 7-point Star Suits 42\" & 48\"
JAS7532
John Deere Spindle Assembly 7-point Star Suits 42\" & 48\"
$106
Available
Specifications
Features
Manuals
| Description: | Non-Genuine John Deere, Sabre Transmission Drive Belt |
| Replaces OEM: | John Deere: GX20241, GX22036, M144044, M151277, M152284, |
| Sabre: GX20241, GX22036, M144044, M151277, M152284, | |
| Deck (inches) | Selected 42", 48", 54" Cut. |
| Deck (mm) | Selected 1067 mm, 1220 mm, 1370 mm Cut. |
| Deck (cm) | Selected 106.7 cm, 122 cm, 137 cm Cut. |
| Length Outside Circumference: | 91 13/16" |
| Length Outside Circumference: | 2332.03 mm |
| Width: (inches) | 17/32" |
| Width: (mm) | 13.49 mm |
| Fits: | 42" (1067 mm) cut John Deere D100, L100, LA105, X300, X304, X310, X324, X330, X350, X354 and X370 ride-on lawn mower models as the transmission drive belt. |
| Belt Position & Size: | Transmission Belt (17/32" Wide x 91 13/16" O.C) |
| Qty required per unit: | 1 |
| Fits: | 48" (1220 mm) cut John Deere X320, X324, X330, X380, X384, X390 and X584 ride-on lawn mower models as the transmission drive belt. |
| Belt Position & Size: | Transmission Belt (17/32" Wide x 91 13/16" O.C) |
| Qty required per unit: | 1 |
| Fits: | 54" (1370 mm) cut John Deere X320, X340, X380 X390 and X584 ride-on lawn mower models as the transmission drive belt. |
| Belt Position & Size: | Transmission Belt (17/32" Wide x 91 13/16" O.C) |
| Qty required per unit: | 1 |
| Fits: | 42" (1067 mm) cut Sabre 14.542GS ride-on lawn mower models as the transmission drive belt. |
| Belt Position & Size: | Transmission Belt (17/32" Wide x 91 13/16" O.C) |
| Qty required per unit: | 1 |
| Standard Pack Quantity: | 1 |
| Footnote: | Our premium quality belts are manufactured with high-strength Aramid fibre cords for heavy duty applications and severe duty cycles. These belts have a drier cover fabric that is designed to increase flexibility and withstand severe clutching action, bending or twisting, heavy loads and backside idler applications. Oil and heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar. |
| Brand: | John Deere - Non Genuine, Sabre - Non Genuine |
| Product Line: | Belt, Drive Belt, Motion Belt, Transmission Belt, V-Belt, |
| Description: | Non-Genuine John Deere, Sabre Transmission Drive Belt |
| Replaces OEM: | John Deere: GX20241, GX22036, M144044, M151277, M152284, |
| Sabre: GX20241, GX22036, M144044, M151277, M152284, | |
| Deck (inches) | Selected 42", 48", 54" Cut. |
| Deck (mm) | Selected 1067 mm, 1220 mm, 1370 mm Cut. |
| Deck (cm) | Selected 106.7 cm, 122 cm, 137 cm Cut. |
| Length Outside Circumference: | 91 13/16" |
| Length Outside Circumference: | 2332.03 mm |
| Width: (inches) | 17/32" |
| Width: (mm) | 13.49 mm |
| Fits: | 42" (1067 mm) cut John Deere D100, L100, LA105, X300, X304, X310, X324, X330, X350, X354 and X370 ride-on lawn mower models as the transmission drive belt. |
| Belt Position & Size: | Transmission Belt (17/32" Wide x 91 13/16" O.C) |
| Qty required per unit: | 1 |
| Fits: | 48" (1220 mm) cut John Deere X320, X324, X330, X380, X384, X390 and X584 ride-on lawn mower models as the transmission drive belt. |
| Belt Position & Size: | Transmission Belt (17/32" Wide x 91 13/16" O.C) |
| Qty required per unit: | 1 |
| Fits: | 54" (1370 mm) cut John Deere X320, X340, X380 X390 and X584 ride-on lawn mower models as the transmission drive belt. |
| Belt Position & Size: | Transmission Belt (17/32" Wide x 91 13/16" O.C) |
| Qty required per unit: | 1 |
| Fits: | 42" (1067 mm) cut Sabre 14.542GS ride-on lawn mower models as the transmission drive belt. |
| Belt Position & Size: | Transmission Belt (17/32" Wide x 91 13/16" O.C) |
| Qty required per unit: | 1 |
| Standard Pack Quantity: | 1 |
| Footnote: | Our premium quality belts are manufactured with high-strength Aramid fibre cords for heavy duty applications and severe duty cycles. These belts have a drier cover fabric that is designed to increase flexibility and withstand severe clutching action, bending or twisting, heavy loads and backside idler applications. Oil and heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar. |
| Brand: | John Deere - Non Genuine, Sabre - Non Genuine |
| Product Line: | Belt, Drive Belt, Motion Belt, Transmission Belt, V-Belt, |

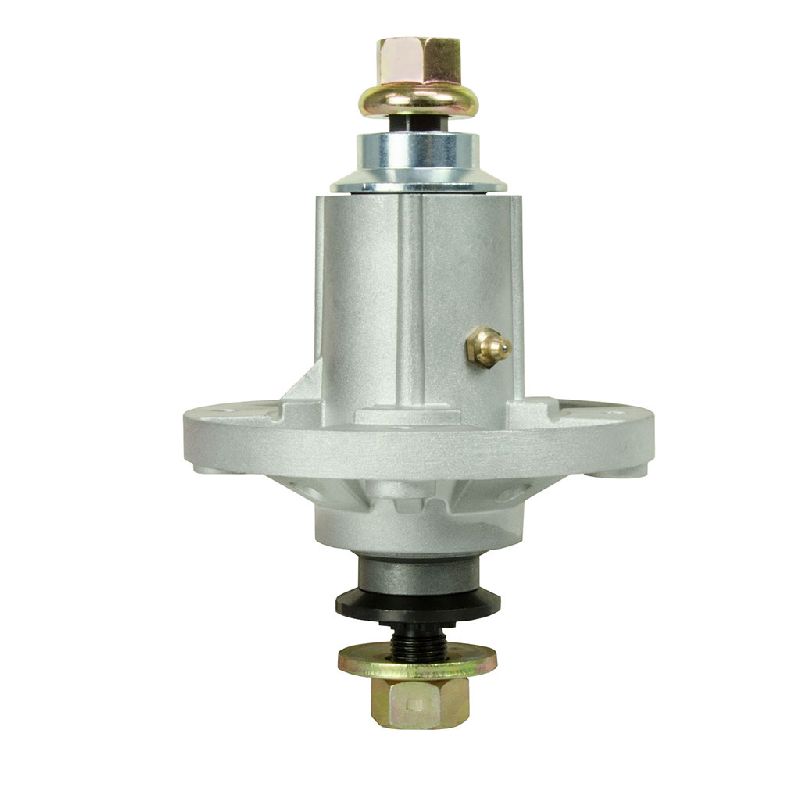

| Description: | John Deere 7 Point Star Spindle Assembly |
| Replaces OEM: | John Deere: GY20454, GY20962, GY21098 |
| Fits: | John Deere 102, 115, 125, 135, 145, 155C, 105 ride on lawnmower models. 42" cut 100 series LA100, LA110, LA120, X110, X120 ride on lawnmower models. 48" cut 100 series LA130, LA140, X140 ride on lawnmower models. |
| Features: | Used in many fitment applications with our PUL7737 spindle pulley |
| Please Note: | This is the late model spindle housing with 5/8" - 18 thread on the spindle shaft at the blade mounting end as used on models after serial number 015480 |
| Brand: | John Deere - Non Genuine, |
| Product Line: | Spindle, Star |
| Description: | John Deere 7 Point Star Spindle Assembly |
| Replaces OEM: | John Deere: GY20454, GY20962, GY21098 |
| Fits: | John Deere 102, 115, 125, 135, 145, 155C, 105 ride on lawnmower models. 42" cut 100 series LA100, LA110, LA120, X110, X120 ride on lawnmower models. 48" cut 100 series LA130, LA140, X140 ride on lawnmower models. |
| Features: | Used in many fitment applications with our PUL7737 spindle pulley |
| Please Note: | This is the late model spindle housing with 5/8" - 18 thread on the spindle shaft at the blade mounting end as used on models after serial number 015480 |
| Brand: | John Deere - Non Genuine, |
| Product Line: | Spindle, Star |
