Kawasaki Fx691v-br00-s 1 1/8” X 108.8mm Crankshaft Vertical Shaft Engine

Kawasaki Fx691v-cr00-s 1&18th” X 108.8mm Crankshaft Vertical Shaft Eng

ENG8384

Kawasaki Fx691v-cr00-s 1&18th” X 108.8mm Crankshaft Vertical Shaft Engine

$4,404
Available
Specifications
Features
Manuals

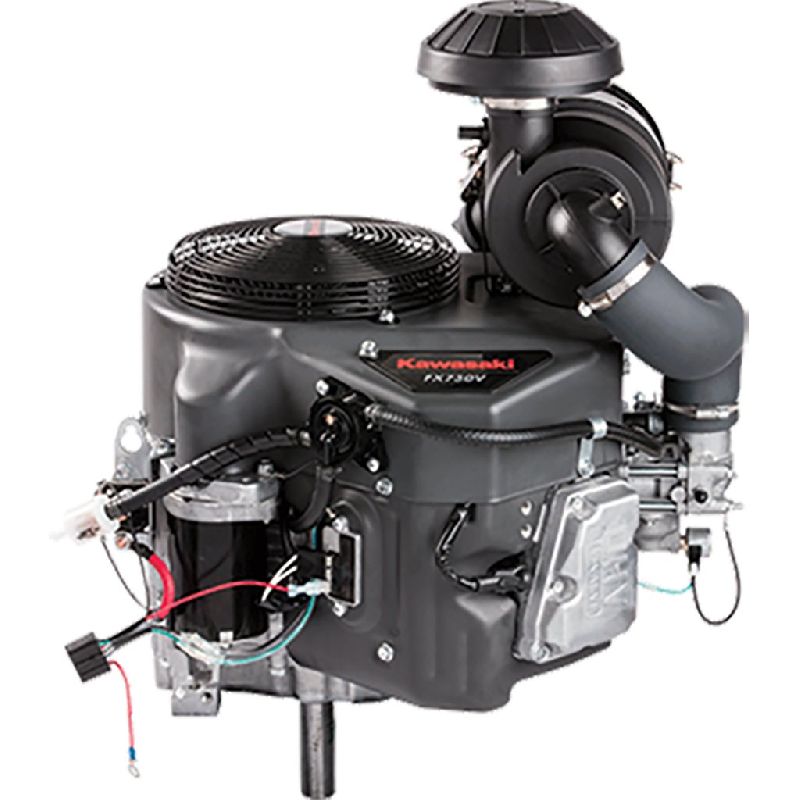

Description:Kawasaki FX691V-FS00-S, 22.0 hp (16.4 kW) Vertical Shaft Engine With A 1 1/8" x
108.8 mm Crankshaft
Editorial:Major power and commercial-grade strength are on tap from the Kawasaki FX Series
engines. When you’re looking for power for your mower or heavy duty industrial
and construction equipment, you’ll find it here. All FX engines are Critical
Power SAE-Certified, compact, 90-degree V-twin engines. Every one features
hemispherical combustion chambers and overhead V-valve technology that helps ensure
low emissions, high power, and smooth operation.
Features:Overhead V-valve,
90° V-twin,
Pressurized lubrication system,
Electronic spark ignition,
Automatic compression release,
Rotating metal grass chopper screen,
Multi-Stage canister air filter,
Cast-iron cylinder liners,
Metal engine cover with integrated clean out ports,
Heavy duty shift-type starter,
Type:Air cooled, 90 degree V-twin, normally aspirated petrol engine.
Engine:726 cc
Engine (cc):726 cc
Horsepower (@3,600 rpm):22.0 hp (16.4 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE
J1995 Standards.)
Cylinder:Two, 90° V-twin.
Cylinder Liner:Cast-iron cylinder liners.
Bore x Stroke:3.1 x 3.0 in. (78 x 76mm).
Displacement:726 cc (44.3 cu. in.).
Compression Ratio:8.2:1
Cooling:Forced air cooled. Fly-wheel fan.
Net Power:Maximum Power 22.0 hp (16.4 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
Net Torque:Maximum Torque 39.3 ft-lbs (53.2 N·m) at 2,200 RPM.
Decompressor:Automatic compression release.
Ignition:Electronic spark ignition.
Crankshaft Diameter:1 1/8" x 108.8 mm (28.5 X 108.8 mm)
Air Filter:Multi-Stage canister air filter
Charging System:12-volt.
Starter:12-volt.
Exhaust/Muffler:No.
Fuel:Unleaded fuel - maximum of 10% ethanol in fuel.
Fuel Filter:Yes, replaceable, automotive-type.
Governor:Mechanical.
Oil Filter:Yes, spin-on engine oil filter.
Oil Capacity:Oil Capacity w/filter 2.2 U.S. qt ( 2.1 litres).
Dry Weight: (lb)101.4 lbs.
Dry Weight: (kg)46.0 kg.
Warranty:KAWASAKI COMMERCIAL ENGINE WARRANTY POLICY FOR AUSTRALIA
GA Power Equipment Spares warrants to the initial purchaser of each new Kawasaki
four-cycle engine that it will repair or replace, free of charge, any engine parts
found to be defective, under normal use and proper maintenance, for a period of
thirty-six (36) months, subject to the following conditions, exclusions,
obligations and limitations.
If you have questions about warranty coverage, please contact the local Kawasaki
dealer.
1. COVERAGE.
a. Any factory-installed engine part found to be defective by Kawasaki within the
thirty-six (36) month warranty term shall be repaired or replaced without charge
for parts or labour at any authorized Kawasaki engine dealer located in Australia
b. A Kawasaki part or accessory sold and installed by an authorised Kawasaki Engine
Dealer, which is found defective in material and/or workmanship, within the three
(3) month warranty term, shall be repaired or replaced (at the option of Kawasaki)
without charge for the part or accessory, at any authorised Kawasaki Engine Dealer
located in Australia.
2. OWNER’S OBLIGATIONS.
The following obligations must be fulfilled by owner to maintain the validity of
the Kawasaki warranty for Australia:
c. Owner must deliver the four-cycle engine to an authorized Kawasaki engine dealer
for inspection, maintenance services and adjustments according to the Periodic
Maintenance Chart for Australia (Right page). The inspection, maintenance services
and adjustments are to be performed at owner’s expense.
d. Owner must present proof of initial retail purchase date to an authorized
Kawasaki engine dealer at the time warranty repairs are performed on the four-cycle
engine.
3. LIMITATIONS.
This warranty shall not apply to or include any of the following:
e. Repair or replacement required as a result of accident, misuse or neglect, lack
of reasonable and proper maintenance, repairs improperly performed or
replacements improperly installed, use of replacement parts or accessories not
conforming to Kawasaki specifications which adversely affect performance and/or
durability, alterations or modifications not recommended or approved in writing by
Kawasaki, and/or wear and deterioration occasioned by the use of the four-cycle
engine, the use of stale or incorrect fuel
f. Routine maintenance services, adjustments, cleaning and/or expendables such as
spark plugs, lubricants, oil filters, air filters, and fuel filters.
4. LIMITED LIABILITY.
g. The liability of Kawasaki under the thirty-six (36) month warranty is limited
solely to the remedying of defects in factory-installed engine parts by an
authorized Kawasaki engine dealer at its place of business during customary
business hours. This warranty does not cover inconvenience or loss of use of the
four-cycle engine or transportation of the four-cycle engine to and from the
Kawasaki dealer. KAWASAKI SHALL NOT BE LIABLE FOR ANY OTHER EXPENSE, LOSS OR
DAMAGE, WHETHER DIRECT, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY ARISING IN
CONNECTION WITH THE SALE OR USE OF OR INABILITY TO USE THE KAWASAKI FOUR CYCLE
ENGINE FOR ANY PURPOSE.
h. NO EXPRESS WARRANTY IS GIVEN BY KAWASAKI WITH RESPECT TO THE KAWASAKI FOUR-CYCLE
ENGINE EXCEPT AS SPECIFICALLY SET FORTH HEREIN.
ANY WARRANTY IMPLIED BY LAW, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, IS EXPRESSLY LIMITED
TO THE THIRTY-SIX (36) MONTH WARRANTY TERM SET FORTH HEREIN. THE FOREGOING
STATEMENTS OF WARRANTY ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER REMEDIES.
i. No distributor, dealer or other four-cycle engine reseller is authorized to
modify this Kawasaki Limited Four-Cycle Warranty.
AUSTRALIAN CONSUMER LAW (REG.90)
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss of damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
The text above applies notwithstanding anything else expressed or implied to the
contrary in this Warranty document
Standard Pack Quantity:1
Please Note:Specifications subject to change without notice.
International Standard:*PLEASE NOTE: Horsepower rating as tested to SAE J1995 Standards.*
Brand:Kawasaki,
Product Line:Engine, Four Stroke Engine, V-Twin Engine,
